README.md

pioarduino (p)eople (i)nitiated (o)ptimized (arduino)

Fork of Platformio Espressif 32: development platform for PlatformIO

Note

This fork was created due to the lack of ongoing development for the Espressif 32 Arduino Core for PlatformIO.

For additional information, please refer to these GitHub links:

https://github.com/espressif/arduino-esp32/discussions/10039 https://github.com/platformio/platform-espressif32/issues/1225 https://github.com/espressif/arduino-esp32/pull/8606

The discussions are self-explanatory, allowing you to draw your own conclusions.

ESP32 is a series of low-cost, low-power system on a chip microcontrollers with integrated Wi-Fi and Bluetooth. ESP32 integrates an antenna switch, RF balun, power amplifier, low-noise receive amplifier, filters, and power management modules.

Documentation (advanced usage, packages, boards, frameworks, etc.)
Issues with boards (wrong / missing). All issues caused from boards will not be fixed from the maintainer(s). A PR needs to be provided to solve.

IDE Preparation

Download and install official Microsoft Visual Studio Code. PlatformIO IDE is built on top of it.

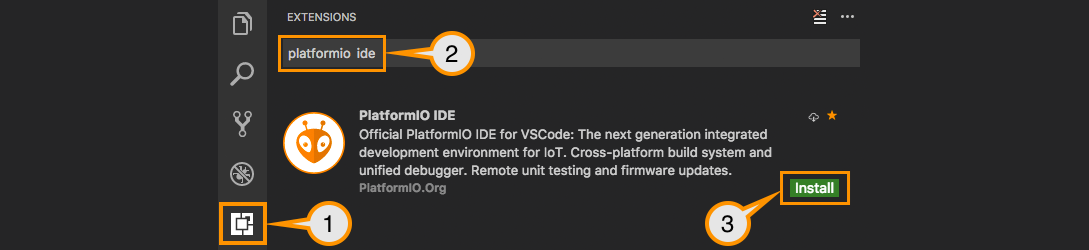

Open the extension manager.
Search for the official platformio ide extension.
Install PlatformIO IDE extension.

Usage

Setup new VSCode PlatformIO project.
Configure a platform option in platformio.ini file:

Stable version

See platform documentation for details.

[env:stable]
platform = https://github.com/pioarduino/platform-espressif32/releases/download/stable/platform-espressif32.zip
board = ...
...

Development version

based on devel branch Arduino 3.1.0 and IDF 5.3.2

[env:development]
platform = https://github.com/pioarduino/platform-espressif32.git#Arduino/IDF53
board = ...
...

Configuration

Please navigate to documentation.
